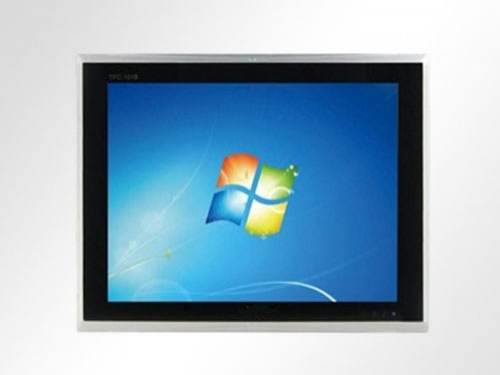

HLZ-P1501-01 is a display highlighting the low-power industrial tablet computer, high strength Aluminum Alloy panel machine adopts closed fan design, shell with a large area of aluminum fin heat sink, to adapt to the harsh and complicated industrial environment, widely used in automation equipment, food processing, medicine, environmental protection, coal mine monitoring and control of wind power detection, medical equipment, photovoltaic equipment, machinery, rubber and other industrial fields.
-High performance Intel J1900 dual core CPU, excellent system processing capability
-15 inch high brightness industrial display and multi touch industrial grade 4 wire resistive touch screen
-Rich communication interface to meet the stability of PLC, sensors and other devices
-Front panel reaches IP65 protection level
|
Display performance
|
Display size
|
15"
|
|
Maximum resolution
|
1024*768（Optional high-definition screen）
|
|
|
Brightness
|
400cd/㎡
|
|
|
Contrast ratio
|
800：1
|
|
|
Touch screen
|
4wire resistance type（Optional 5 wire resistor or capacitor screen） |
|
|
System configuration
|
CPU
|
Intel J1900（Optional INTEL ATOM D525Dual core）
|
|
chipset
|
/
|
|
|
Memory
|
2GB DDRIII ，Top support 8GB（Optional 4G、8G）
|
|
|

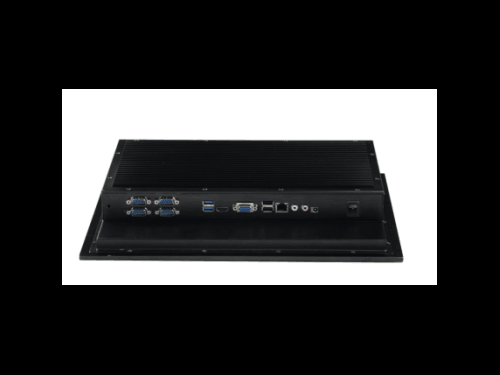

IO Interface
|
Line
|
2*10/100/1000 Mbps
|
|
COM
|
4*COM，Maximum support 8個COM
|
|
|
USB
|
4*USB,Maximum support 9個USB
|
|
|
PS/2
|
（Optional）
|
|
|
VGA
|
1*VGA
|
|
|
HDMI
|
1*HDMI
|
|
|
Audio
|
MIC/Line-out
|
|
|
Other
|
4*GPIO
|
|
|
Storage
|
Hard disk
|
32G SSD（Optional 64G或2.5”Laptop hard drive）
|
|
Extended selection
|
1* Mini-PCIE，1*MSATA
|
|
|
Work environment
|
Temperature：﹣10～55℃ Humidity：5%～ 90%（non-condensing）
|
|
|
Front panel
|
High strength aluminum alloy
|
|
|
Power
|
DC12V input, with the AC 100-240V external power adapter |
|
|
Colour
|
Silver / Black
|
|
|
Installation method
|
Embed panel type, VESA standard arm
|
|
|
Outline size（W*H*D）
|
396mm × 310 mm × 54 mm（Customizable）
|
|
|
Recommended mounting dimension
|
100mm× 100 mm(Customizable)
|
|
