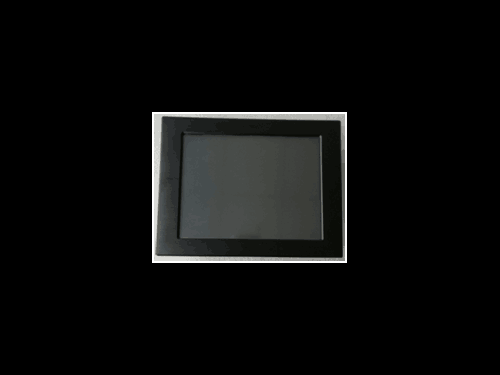

HLZ-P0907-01Is a 9.7 "display highlighting low-power industrial tablet computer, high strength Aluminum Alloy panel machine adopts closed fan design, shell with a large area of aluminum fin heat sink, to adapt to the harsh and complicated industrial environment, can be widely used in automation equipment, wind power, coal mine monitoring, environmental monitoring, rubber machinery, machine vision and other industrial fields.
-9.7” Low power consumption industrial grade LCD and multi contact industrial level resistance touch
- Using IntelJ1900 dual core low power processor
|
Display performance
|
Display size
|
9.7"
|
|
Maximum resolution
|
1024*768
|
|
|
brightness
|
300cd/㎡
|
|
|
contrast ratio
|
800：1
|
|
|
Touch screen
|
4 wire resistance type (optional capacitive screen) |
|
|
system configuration
|
CPU
|
Intel J1900 1.99GHz
|
|
Chipset
|
/
|
|
|
Memory
|
2GB DDRIII ，Maximum support for 8GB
|
|
|

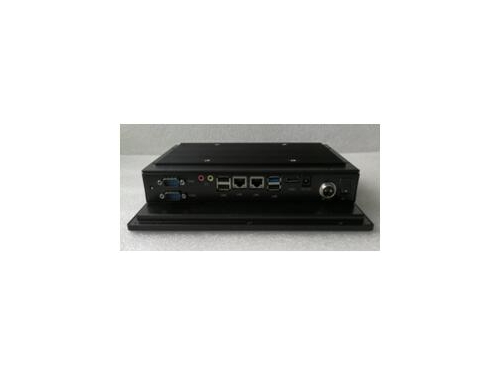

IO interface
|
Line
|
2*10/100/1000 Mbps
|
|
Com
|
2*COM，Maximum support for 6*COM
|
|
|
USB
|
4*USB（1個USB3.0）
|
|
|
PS/2
|
/
|
|
|
VGA
|
/
|
|
|
HDMI
|
1*HDMI
|
|
|
Audio
|
Line-out、MIC
|
|
|
Other
|
4*GPIO
|
|
|
Storage
|
Hard disk
|
32G SSD（Optional 64G and above）
|
|
Extended selection
|
1* Mini-PCIE、1*MSATA
|
|
|
Work environment
|
Temperature：﹣10～55℃ Humidity：5%～ 90%（non condensing） |
|
|
Storage environment
|
Temperature：-20℃～60℃ ；Humidity：5%～90%（non condensing）
|
|
|
Front panel + shell
|
High strength aluminum alloy
|
|
|
Power
|
DC12V input, optional AC 100-240V external power adapter |
|
|
Colour
|
Black / Silver
|
|
|
Installation method
|
Embed panel type (optional VESA arm)
|
|
|
Outline size（W*H*D）
|
260mm × 200 mm × 60 mm
|
|
|
Recommended mounting dimension
|
240mm×185 mm
|
|
